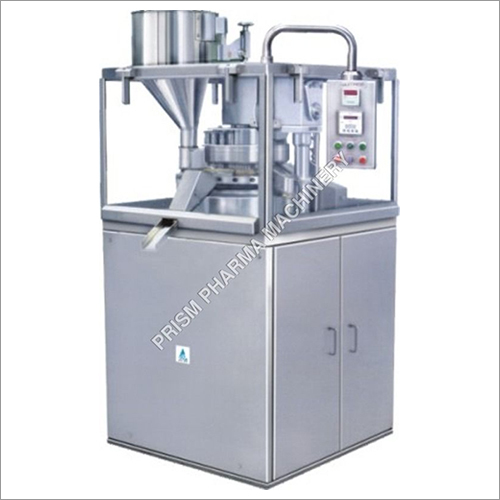

Double Sided Rotary Tablet Press
nan INR
Product Details:
- Type Tablet Pressing Machine
- Material Stainless Steel
- Capacity 200-250 Kg/hr
- Computerized Yes
- Control Mode Automatic
- Voltage 220-340 Volt (v)
- Power 410-440 Volt (v)
- Click to View more
X
Double Sided Rotary Tablet Press Price And Quantity
- nan INR
- 1 Piece
Double Sided Rotary Tablet Press Product Specifications
- 220-340 Volt (v)
- Silver
- Automatic
- 410-440 Volt (v)
- Stainless Steel
- Yes
- Tablet Pressing Machine
- 275-425 Kilograms (kg)
- 200-250 Kg/hr
- Yes
Double Sided Rotary Tablet Press Trade Information
- Cheque
- 1 Piece Per Day
- 1-12 Week
- Box
- Western Europe Australia Middle East Central America Africa South America Asia Eastern Europe North America
- All India
Product Description
With the assistance of our in-depth market understanding, we have been capable of manufacturing and exporting the Double Sided Rotary Tablet Press. Operated as the dual equipment, these machines are used to formulate the tablets and capsules from powders. Comes under the model of GMP Model (PTCMB4), our Double Sided Rotary Tablet Press is available with different specifications and working capabilities.
Features:
- Sturdy in designs
- Resistant to rust
- Long lasting performance
Further Details:
- PTCMB4 square GMP model, Double Sided Rotary tablet press suitable for medium size batch production with uniform tablet size and weight.
- It is completely separated into three zones i. e. Tablet Compression zone, Machine service zone and Electrical controls zone with PLC Control System
- The machine offered in three model Tooling.
- Simple & Convenient Operation, Changeover, Cleanliness, Operator Protection & Ease to Maintenance.
- Pre-Compression System to improve compressibility and tablet Quality.
- Closed Gearbox, No Gearing on Turret.
- Force feed systems with bottom drive for uniform filling to weight consistency.
- Fast changeover and Easy cleaning designed with Easy removal Weight Adjustment Sector.
- Upper Punch penetration & Lower Punch scraper seal.
- Touch screen interface controls.
- Stainless steel and acrylic glass surrounding.
- Design is cGMP Current Good Manufacturing Practices compliance.
- Product contact parts AISI 316/ 316L & non contact parts AISI 304
Specification:
| MODEL/SPECIFICATION | PTCMB4D-27 | PTCMB4-35 | PTCMB4-45 |
| Model | GMP | GMP | GMP |
| Compression | Square Double Sided Rotary Tablet Press | ||
| No. of Stations | 27 | 35 | 45 |
| Type of tooling | D | B | BB |
| Output Tablet/Hour | 50000 to 129000 | 70000 to 168000 | 90000 to 216000 |
| Max. Operating Pressure (Main) | 10 Ton | 6.5 Ton | 6.5 Ton |
| Max. Operating Pressure (Pre-Compression) | 0 | 0 | 0 |
| Max. Tablet Diameter | 25 mm | 16 mm | 11 mm |
| Max. Depth of fill | 20 mm | 17.5 mm | 17.5 mm |
| Max. Tablet Thickness | |||
| Upper punch Penatration | 1.5 to 6 mm | 1.5 to 6 mm | 1.5 to 6 mm |
| Power Total | |||
| Main Electric motor | 3.70 kW / 5 HP | 2.25 kW / 3 HP | 2.25 kW / 3 HP |
| Powder Feeder Motor | 109x109x182 H | 109x109x182 H | 109x109x182 H |
| Overall Dimension (Aprx) (cm) | |||
| Net Weight (Aprx) | 1143 kg | 1143 kg | 1143 kg |
| Case Dimension (Aprx) (cm) | 131x137x204 H | 131x137x204 H | 131x137x204 H |
| Gross Weight (Aprx) | 1400 kg | 1400 kg | 1400 kg |
