Dust Extractor
24330 INR
Product Details:
- Type Dust Extractor
- Material Stainless Steel
- Capacity 200-250 Kg/hr
- Computerized Yes
- Control Mode Automatic
- Voltage 220-340 Volt (v)
- Power 410-440 Volt (v)
- Click to View more
X
Dust Extractor Price And Quantity
- 1 Piece
- 24330 INR
Dust Extractor Product Specifications
- 200-250 Kg/hr
- Stainless Steel
- Yes
- Dust Extractor
- Yes
- Silver
- 220-340 Volt (v)
- 410-440 Volt (v)
- 275-425 Kilograms (kg)
- Automatic
Dust Extractor Trade Information
- Cheque
- 1 Piece Per Day
- 1-12 Week
- Box
- Australia North America South America Eastern Europe Western Europe Middle East Africa Central America Asia
- All India
Product Description

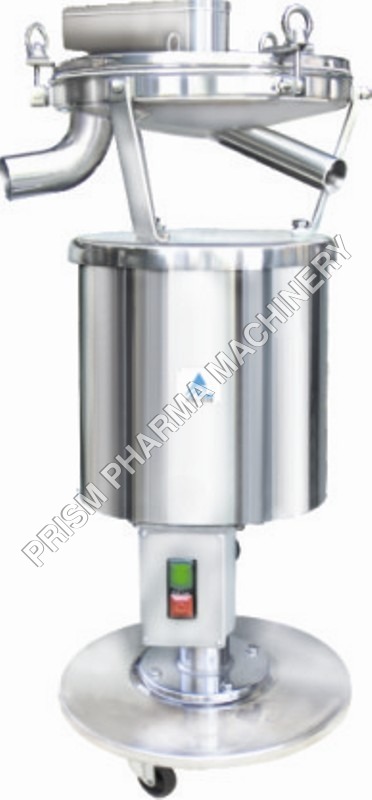

Our dust extractor is deployed for directing dust in procedure of packing and tableting. This unit powerfully suggest the application of dust control instrument with every de-duster and tablet press. The dust laden air penetrates into the accumulator through an extension chamber where hefty dust particles are accumulated by gravity. Whereas, fine dust particles goes vertical through one huge hole and is ultimately accumulated by filter. There is a useful snap activity shaking process for shaking filter and dirt is gathered intro drawer sort tray. In addition, a large door is provided in our dust extractor for machine cleaning and filter bag changing. Our system can be simply connected with every sort of de-duster and tablet press.Key Features:
- Has dynamically adjusted blower
- Dust collector and extractor operate as demanded
- Convenient and simple working
- Has effective cleanliness and changeover
- Possesses simple handling and workers’ safety
- From CU feet commercial manufacturing, dust storage capacity is offered
- Product non-contact and contact components are AISI 316L or 316 and AISI 304, accordingly
TECHNICAL SPECIFICATIONS:
| MODEL | PDE 150 | PDE-300 |
| Suction Capacity | 150 cfm (250 m/ hour) at 70 mm W.G. | 300 cfm (500 m/ hour) at 70 mm W.G. |
| Filtration Area | 9 sq ft. | 12 sq ft. |
| Dust Storage Capacity | 3/4 cu.feet | 3/4 cu/feet |
| Electric Motor | 1 HP / 0.75 kW | 1.5 HP / 1.12 kW |
